Transmission subsystem

Yoke, two 35 mm drive shafts (with shaft mounts), two LMK35UU linear bearings, transmission mount plate. Mounts on the main frame.

Function

The transmission transmits force from the gears (drivetrain) to the extraction/synchronisation system (see Figure 1, Figure 3). That system then presses fruit against the collection system mounted on the collection system mount plate (formerly the static mount plate / loaded mount plate).

Load path: Gears (drivetrain) → transmission (yoke, shafts, bearings) → extraction/synchronisation → fruit pressed against collection system on collection system mount plate.

Components (CAD colour key)

Colour (hex)Component
#2F9EBAYoke — moving part; transmits force to extraction/synchronisation
#798C2ETwo drive shafts with shaft mounts at both ends (35 mm)
#3582E4Two LMK35UU linear bearings — guide linear motion of shafts
#B341C3Transmission mount plate — mounts to main frame

CAD views. Refer to figures in the text as Figure 1, Figure 2, etc.

Transmission assembly — mount plate, yoke, shafts, bearings
Figure 1. Transmission assembly: mount plate, yoke, two shafts, two LMK35UU linear bearings.

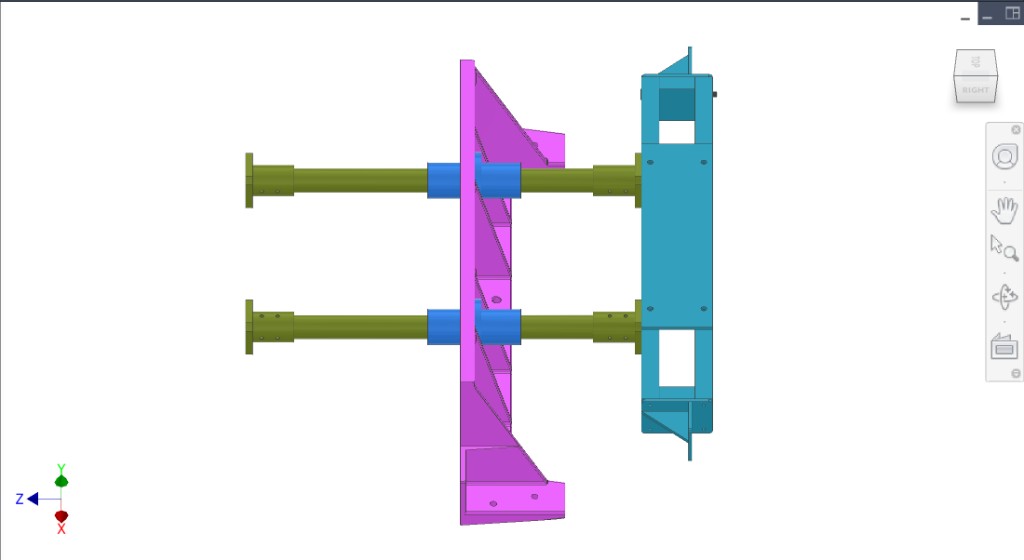

Side view — yoke, shafts, bearings
Figure 2. Side view — yoke, shafts, shaft mounts, linear bearings.

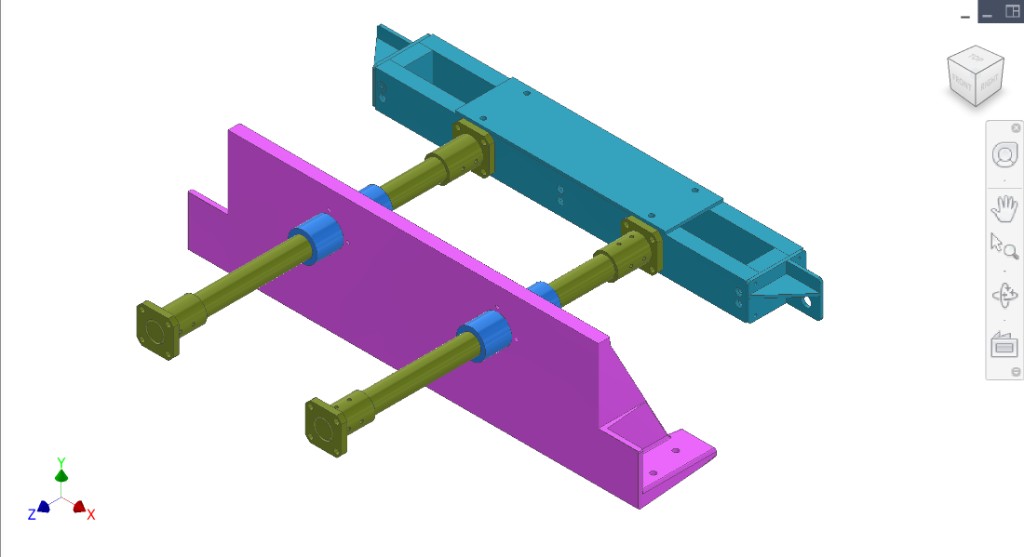

Isometric — transmission
Figure 3. Isometric — transmission mount plate, yoke, drive shafts, bearings.

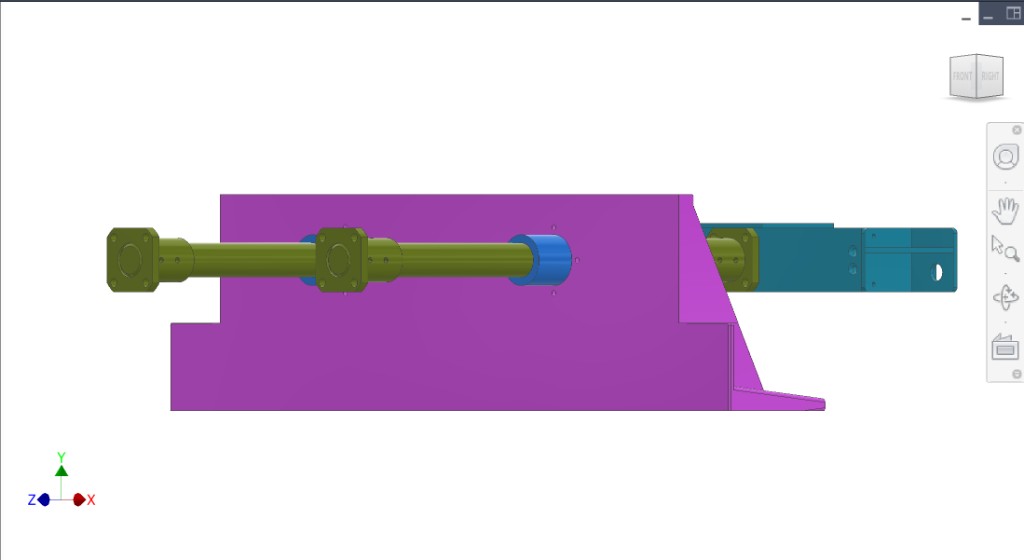

Side profile — plate, shafts, yoke
Figure 4. Side profile — plate, shafts, bearings, yoke.

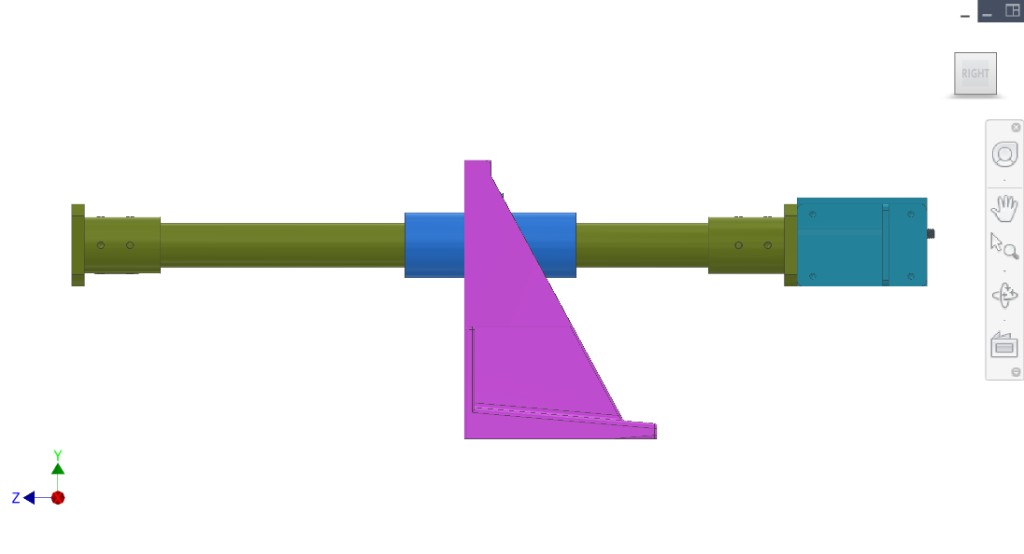

Right-side view
Figure 5. Right-side view.

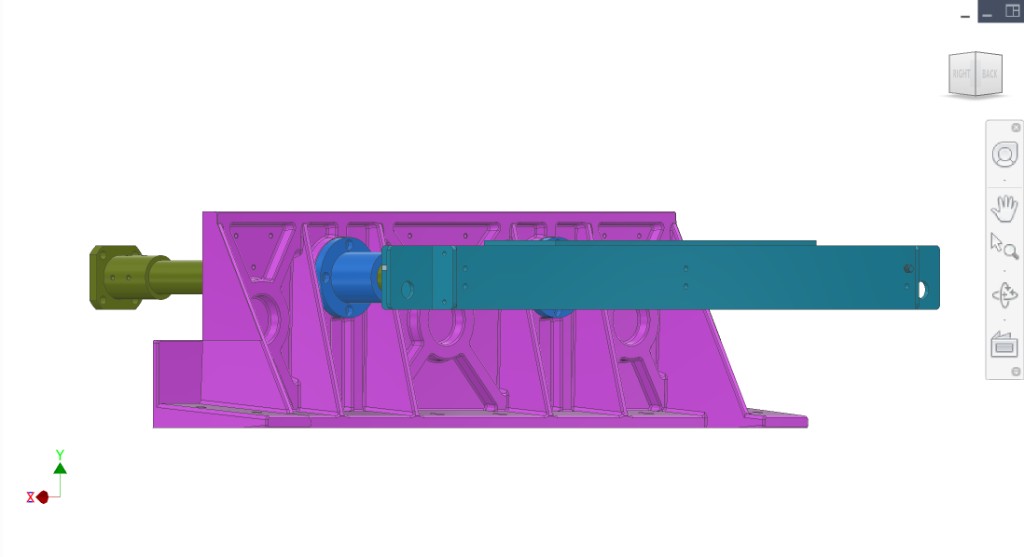

Side — yoke and bearings on plate
Figure 6. Side — yoke, shafts, bearings on transmission mount plate.

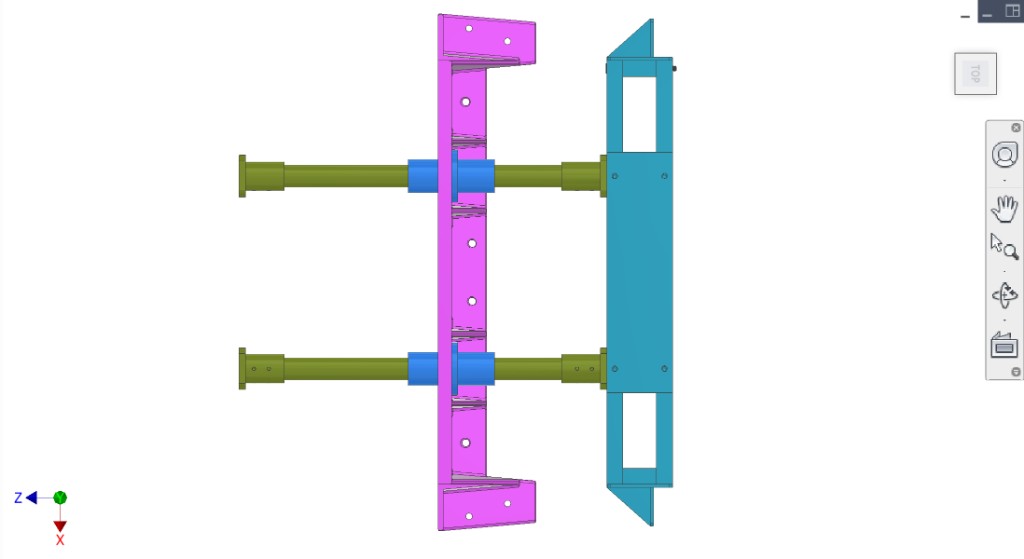

Top view — yoke, shafts; collection mount plate
Figure 7. Top/slightly isometric — yoke, shafts, bearings; collection system mount plate in view.
