Peel chute (red), core chutes (welded to it), two augers (teal). Peels and plugs/cores taken away separately.
Function (extraction cycle context)
Pressing stroke: Juice leaves the oranges into the branched Y-section of the collector (Collection).
Plug ejection: The plug ejection system pushes a plunger through the filter, pushes the plug back out of the plug cutter, and the plug falls into the core chute (see Figure 2, Figure 4, Figure 9).
Peels: Meanwhile, peels fall to the sides of the peelers and avoid the core chutes, separating into two channels for separate processing.
Augers: The two augers take the peels and the plugs/cores away separately.
Components (CAD colour key)
Colour (hex)
Component
#D43C3C
Peel chute — red; folded sheet metal; peels from sides of peelers
welded to chute
Core chutes — plugs/cores fall here after plug ejection
#28B399
Two augers — teal; take peels and plugs/cores away separately
CAD views. Refer to figures in the text as Figure 1, Figure 2, etc.

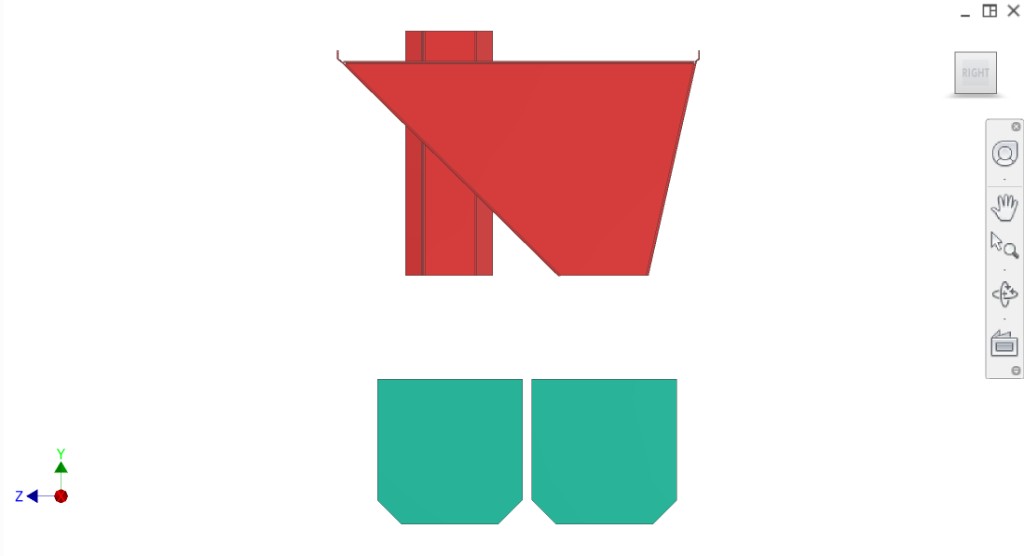

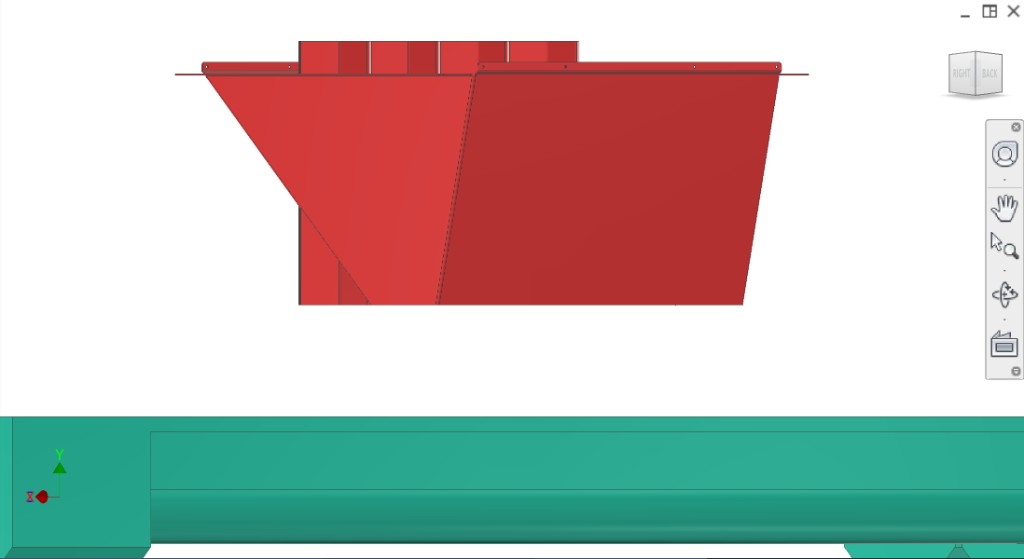

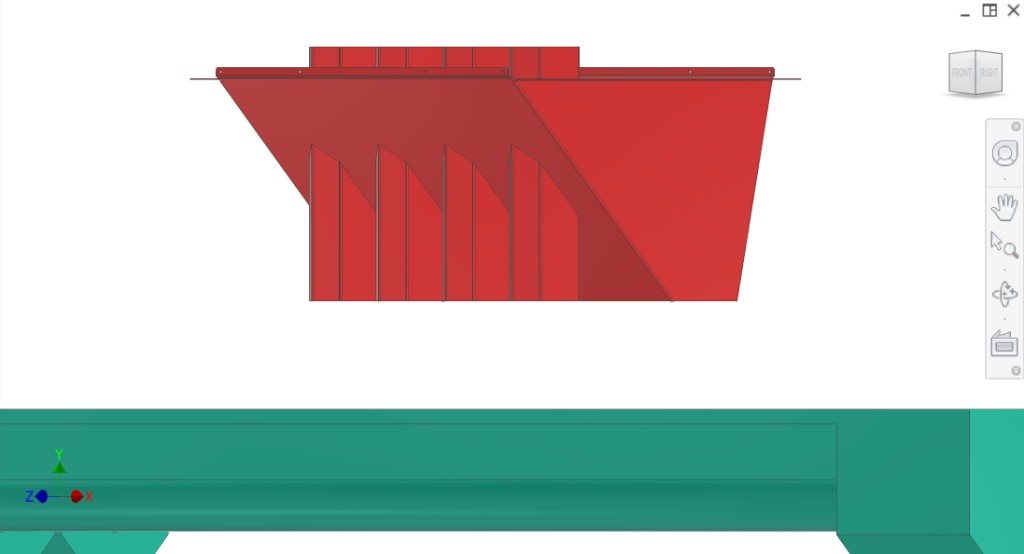

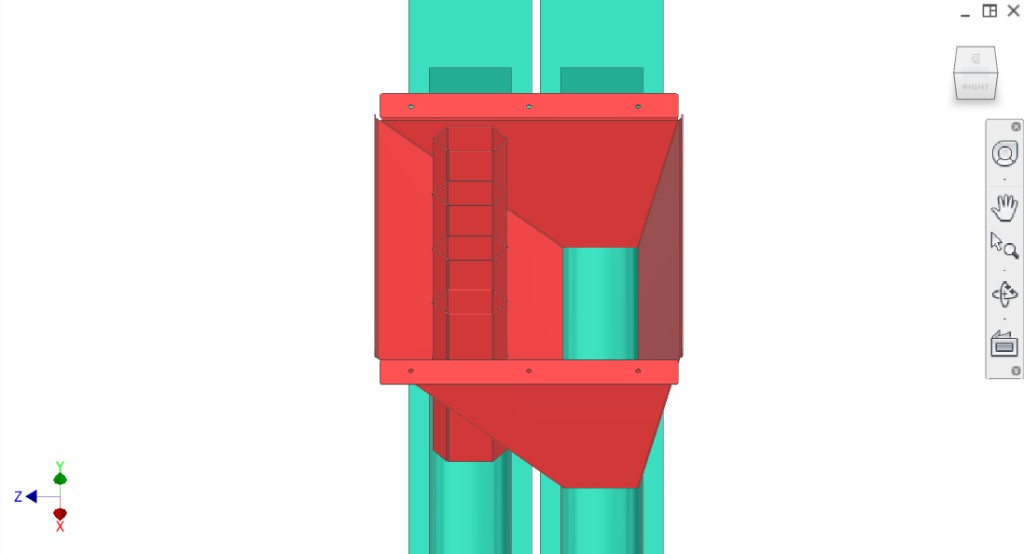

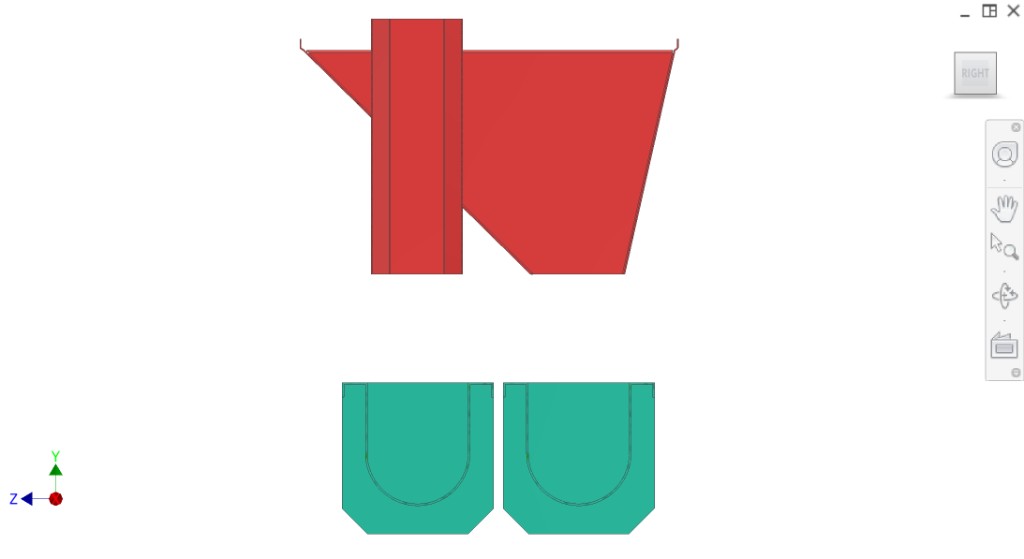

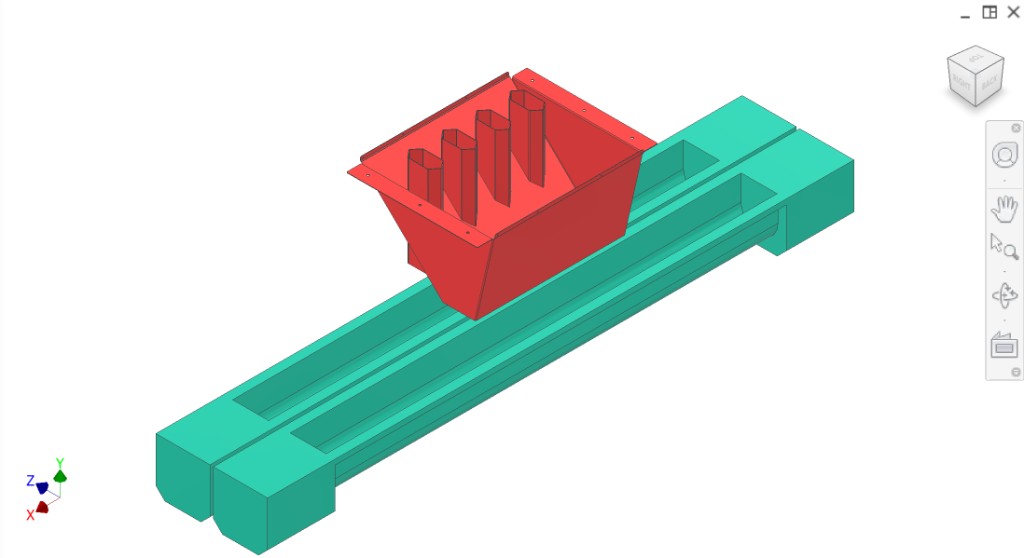

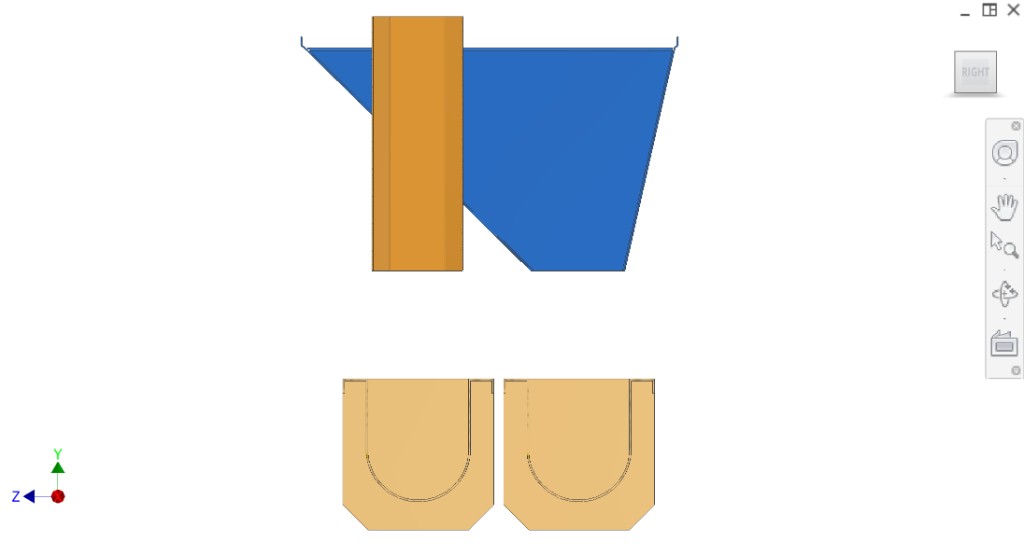

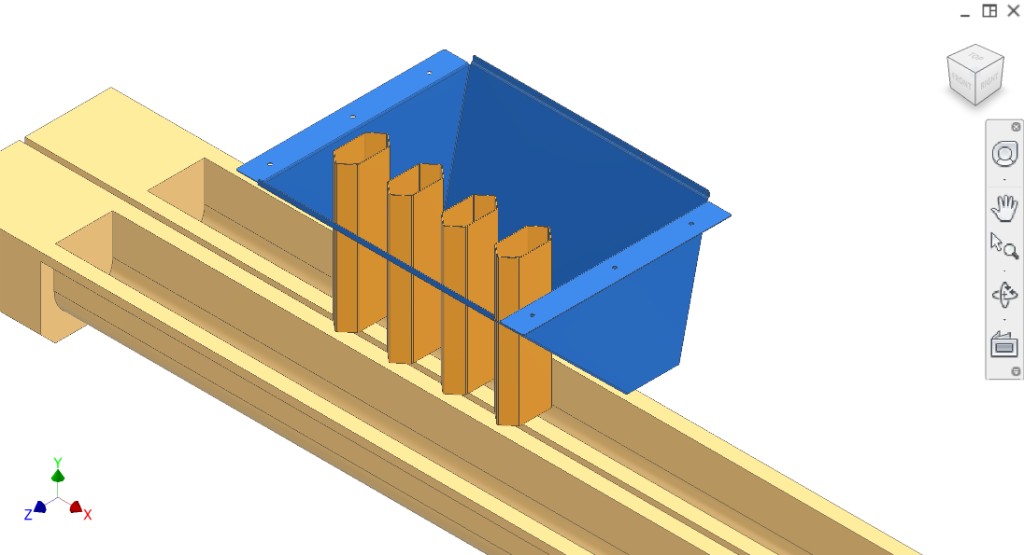

Figure 1. Top-down isometric — red chute on teal base, two channels.Figure 2. Red peel chute with core chutes; two teal augers.Figure 3. Red chute only, above frame.Figure 4. Right — red chute, core chutes, teal augers below.Figure 5. Front — red folded sheet metal chute above teal frame.Figure 6. Right — red chute; two teal U-shaped auger housings.Figure 7. Alternative — blue peel chute, orange core chutes.Figure 8. Alternative — blue chute, orange core chutes, channels.Figure 9. Red chute, four core chutes, teal auger channels.
Interfaces
Input (plugs): From plug ejection — plug falls into core chute.
Input (peels): From collection/extraction — peels to sides of peelers, two channels.
Output: Two augers convey peels and plugs/cores away separately.
