2.3 Drivetrain subsystem

Motor → V-belt → reducer → gear train → cam bearings → interface with transmission yoke. Mounts on drivetrain mount plate (frame).

Reminders: Provide Sumitomo Cyclo 6000 reducer specs. Provide more specs for WEG 22 1450 rpm motor. Additional drivetrain details to be added later.

Components (CAD colour key)

See Figure 1, Figure 7, Figure 10 for yoke/cam interface and gear assembly.

Colour (hex)Component
#FFE696Driven gear
#237A3APassive gear
#4AB6F6Two cam bearings — interface with yoke of transmission subsystem
#3683E6Passive gear shaft
#7D26B5Locating roller bearing SKF_F4BRP 208-SRB-CRH_ECY 213 (passive gear sits on)
—Non-locating roller bearing SKF_F4BRP 208-SRB-CLE (driven gear sits on)
#366D20Reducer spacer
#5EB45DSumitomo Cyclo 6000 reducer
#572D9AV-belt — DIN 2215 17×957, 2-belt, 1000 mm long
#6A37BBWEG 22 1450 rpm motor
#D2B545Stainless steel motor mount plate spacer
#207E96Wooden motor mount plate

Drivetrain and cam/yoke interface. Refer to figures in the text as Figure 1, Figure 2, etc.

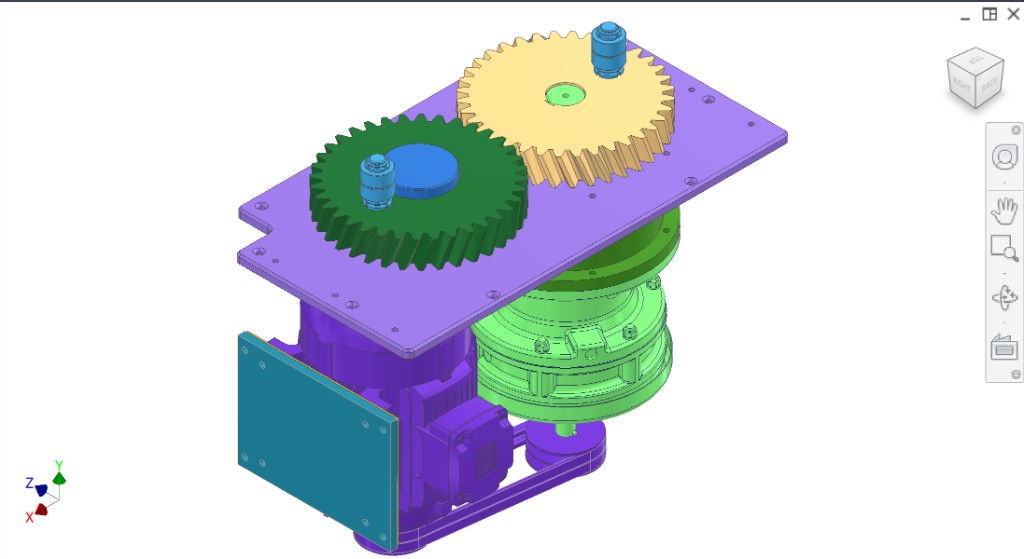

Drivetrain isometric
Figure 1. Isometric — gears, bearings, reducer, motor, V-belt.

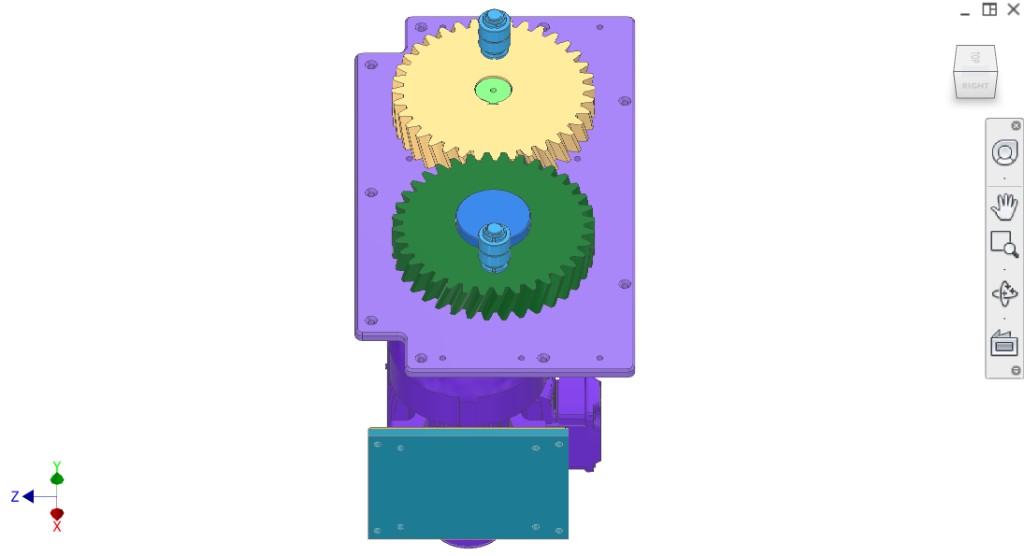

Drivetrain top
Figure 2. Top-down — two gears, reducer spacer, mounting.

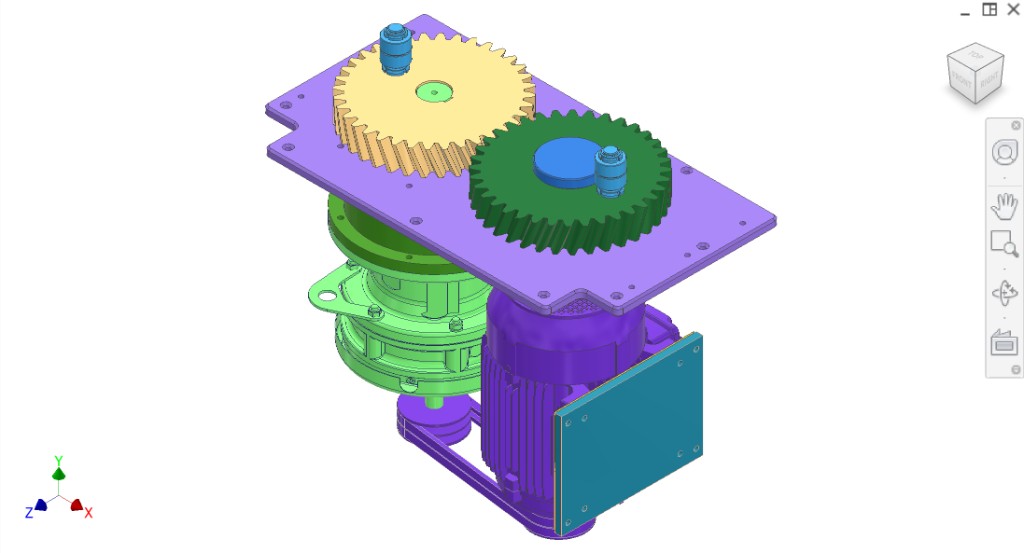

Drivetrain elevated
Figure 3. Elevated front-right — gear stack, reducer, motor, V-belt.
Drivetrain front-right

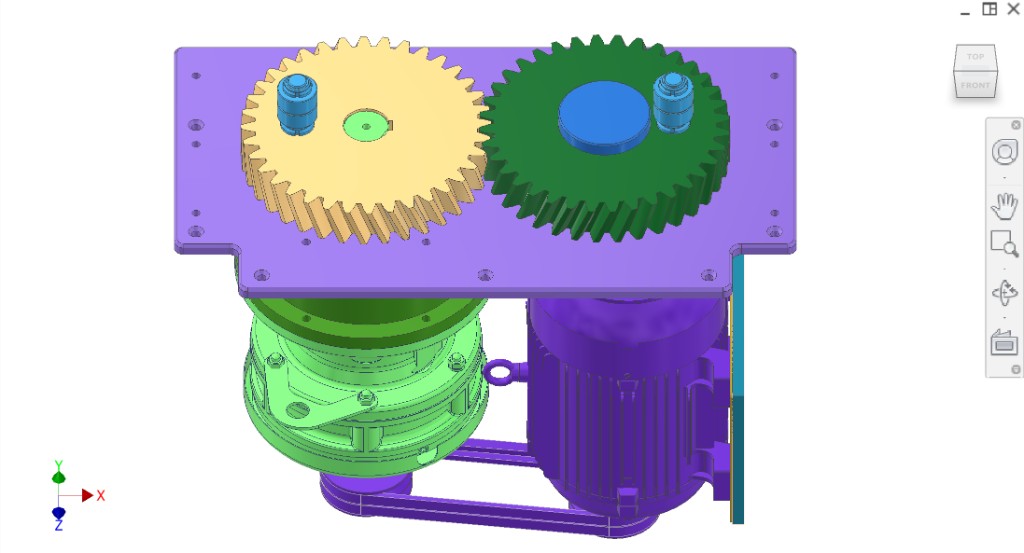

Figure 4. Front-right — mounting plate, gears, cam bearings, reducer, motor, spacers.
Drivetrain front

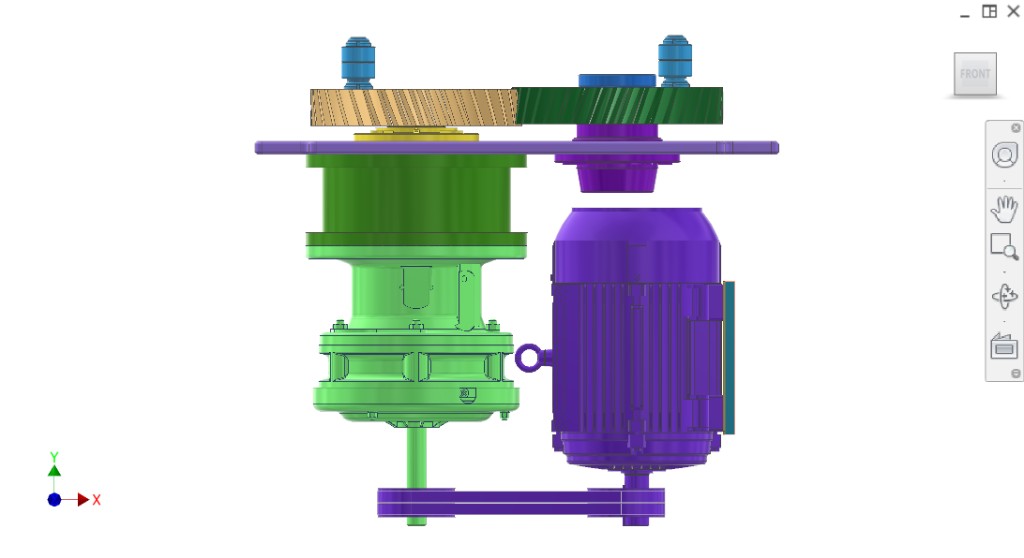

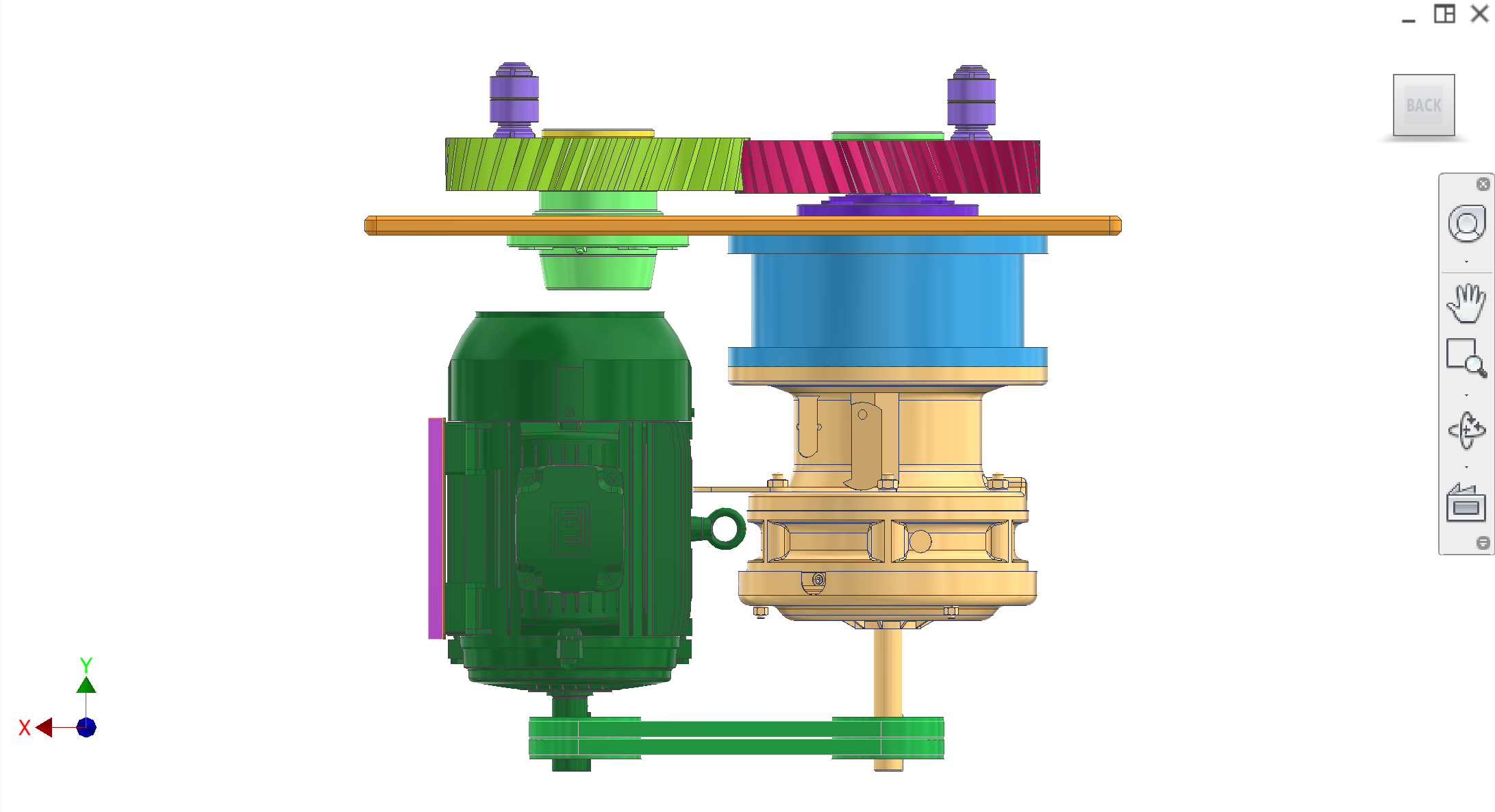

Figure 5. Front — motor, V-belt, reducer, gears, cam bearings.
Drivetrain side

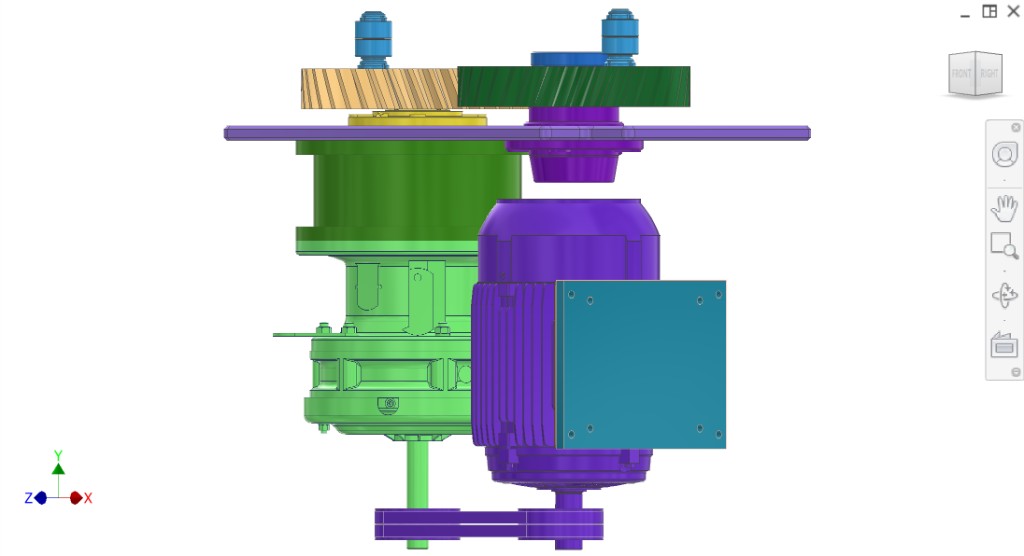

Figure 6. Right side — passive gear shaft, cam bearing, gears, motor, reducer.

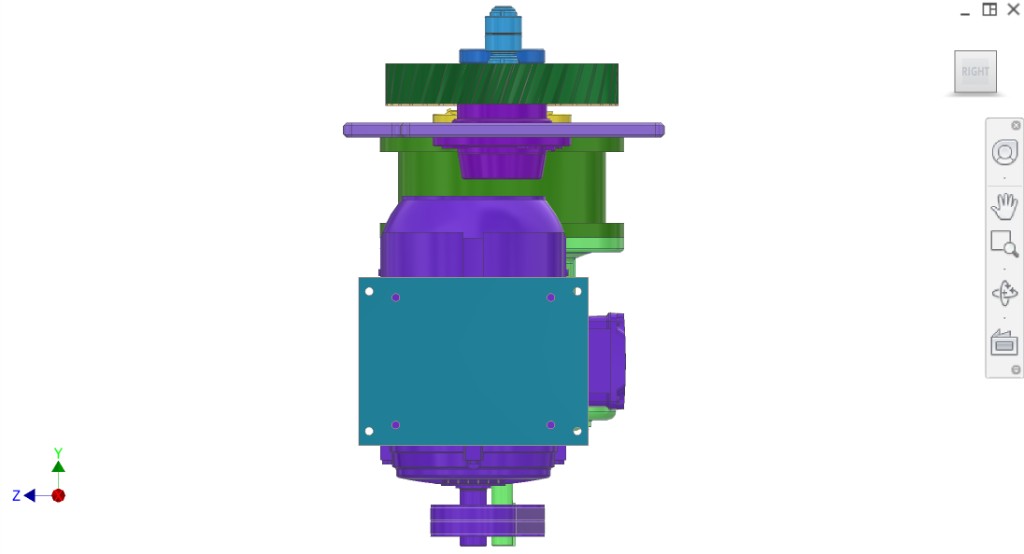

Cam bearings / yoke interface
Figure 7. Cam bearings interfacing with transmission subsystem yoke.

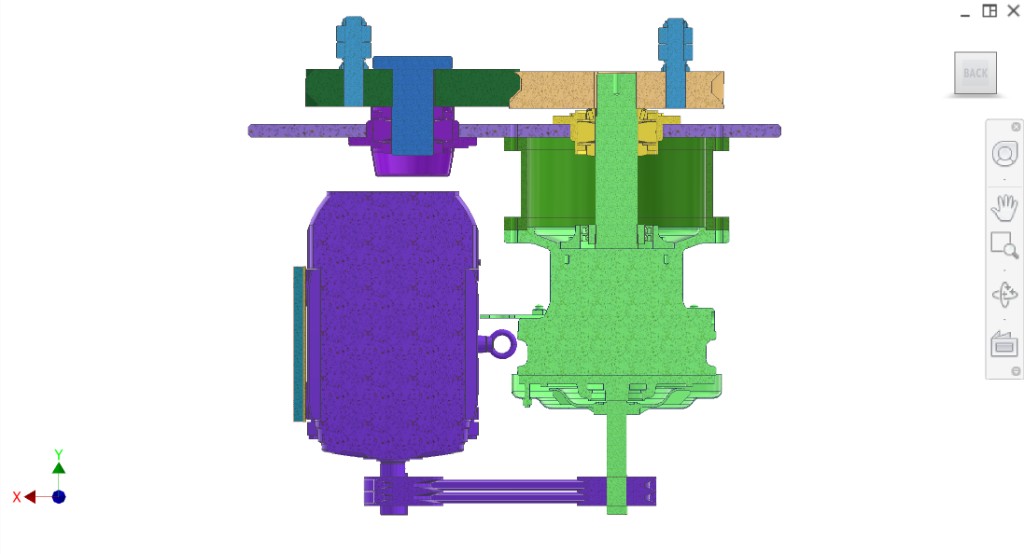

Drivetrain front alt
Figure 8. Front/side — gears, bearings, reducer, motor.

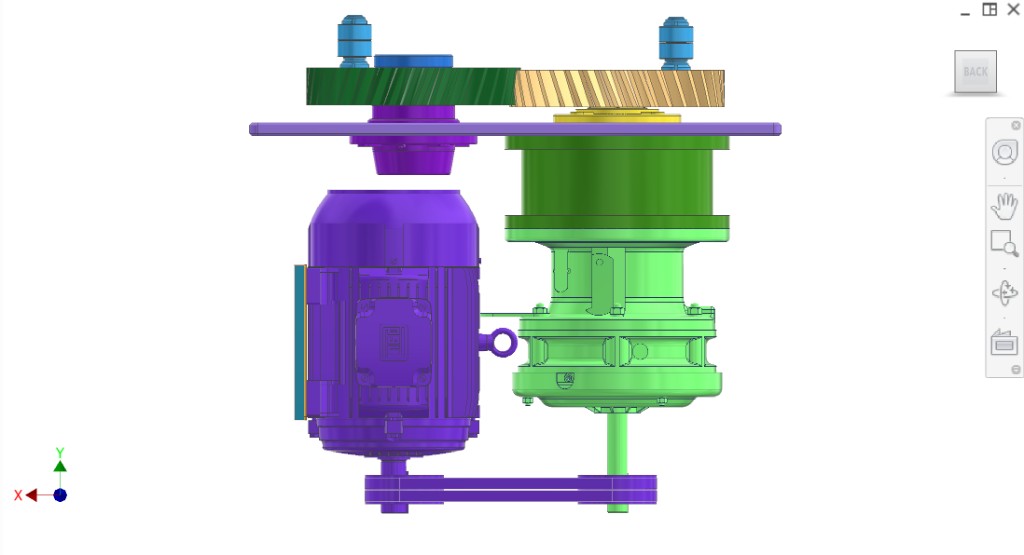

Drivetrain cross-section
Figure 9. Cross-section — yoke, cam bearings, mount plates, gears, reducer, motor, V-belt.
Drivetrain top yoke

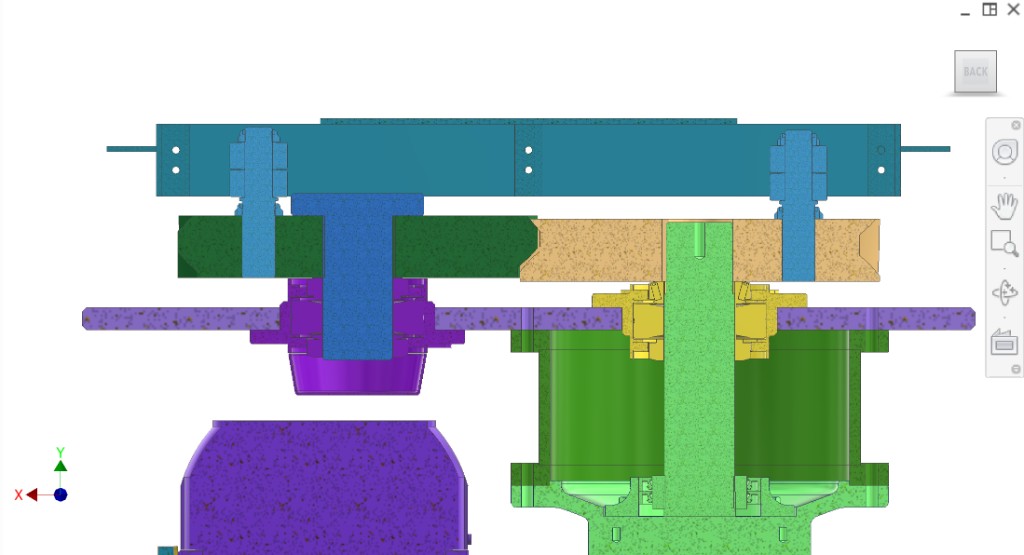

Figure 10. Top — two gears meshing, yoke (#2F9EBA), cam bearings in yoke.
Drivetrain back

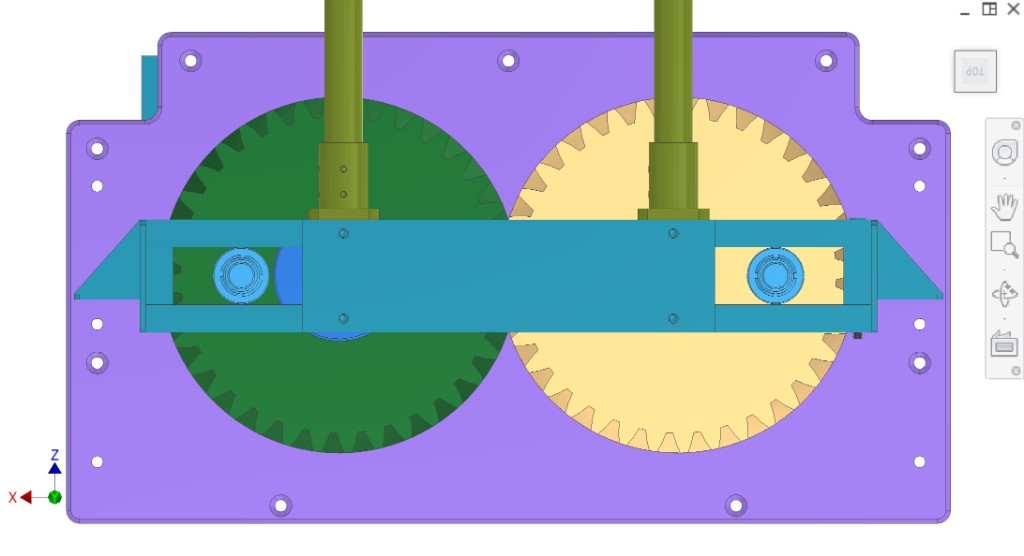

Figure 11. Back — motor, reducer, V-belt, mounting.

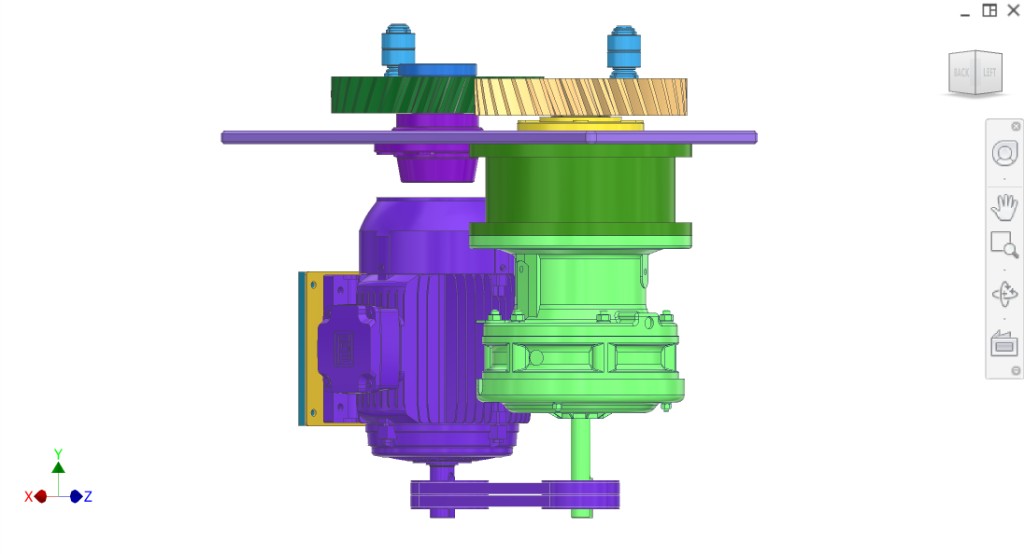

Drivetrain front 12
Figure 12. Front — full assembly.

Interfaces
